Hello~ After finishing the macOS series, we’re back this time with ImageIO.

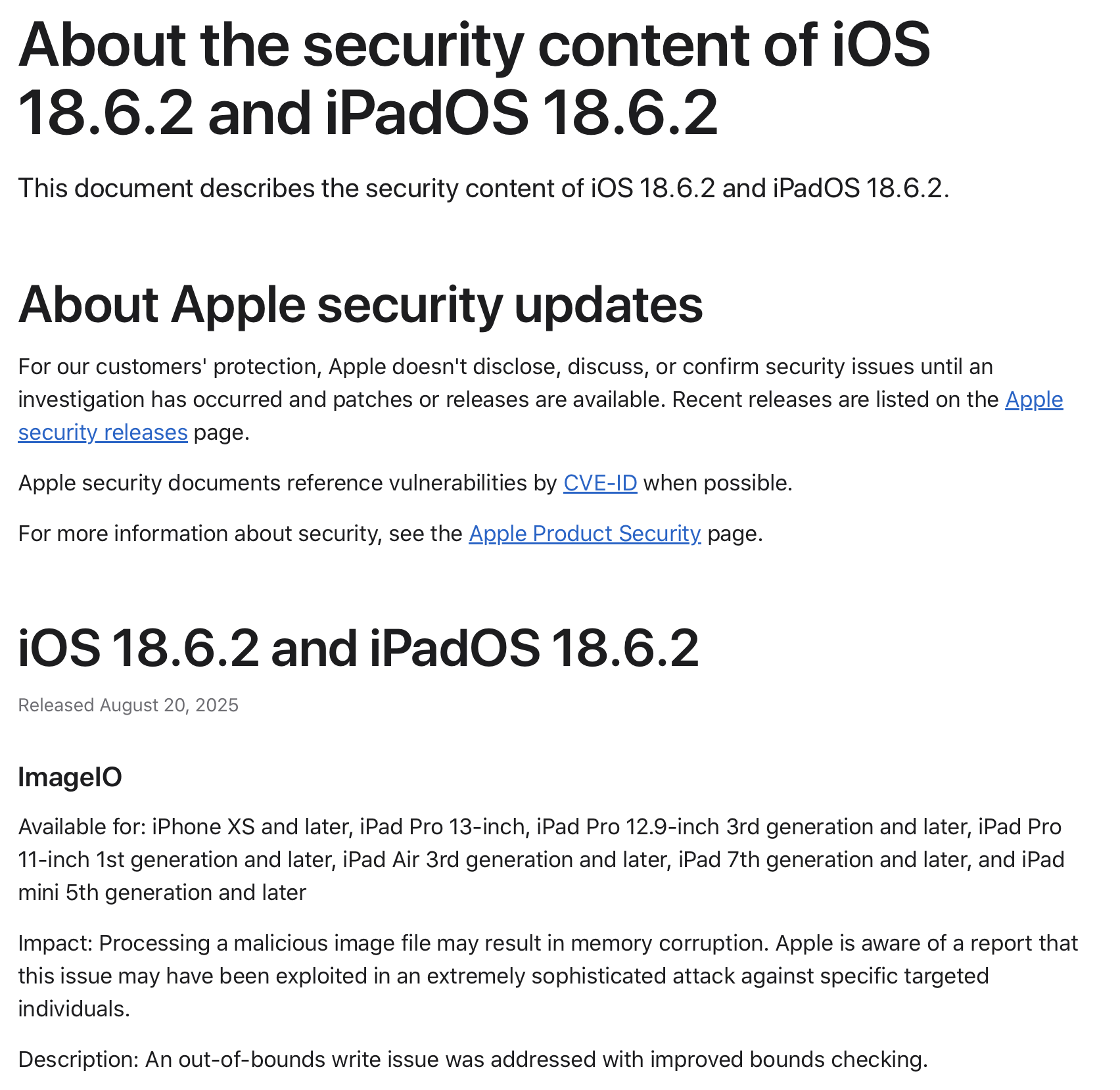

On August 20th, a vulnerability was discovered in the ImageIO framework used by iOS, macOS, and iPadOS.

It was reportedly exploited in the wild to target specific individuals — let’s analyze what kind of vulnerability it was!

Shall we begin? 😎

0. ImageIO

ImageIO is Apple’s image processing framework used across macOS, iOS, and iPadOS.

It provides APIs for reading, writing, accessing metadata, compression, and decoding

for a wide range of image formats. It serves as the image processing backend for many system apps and features — including Core Graphics, Photos, Preview, Safari, Messages, AirDrop, Mail, and iCloud.

1. CVE-2025-43300

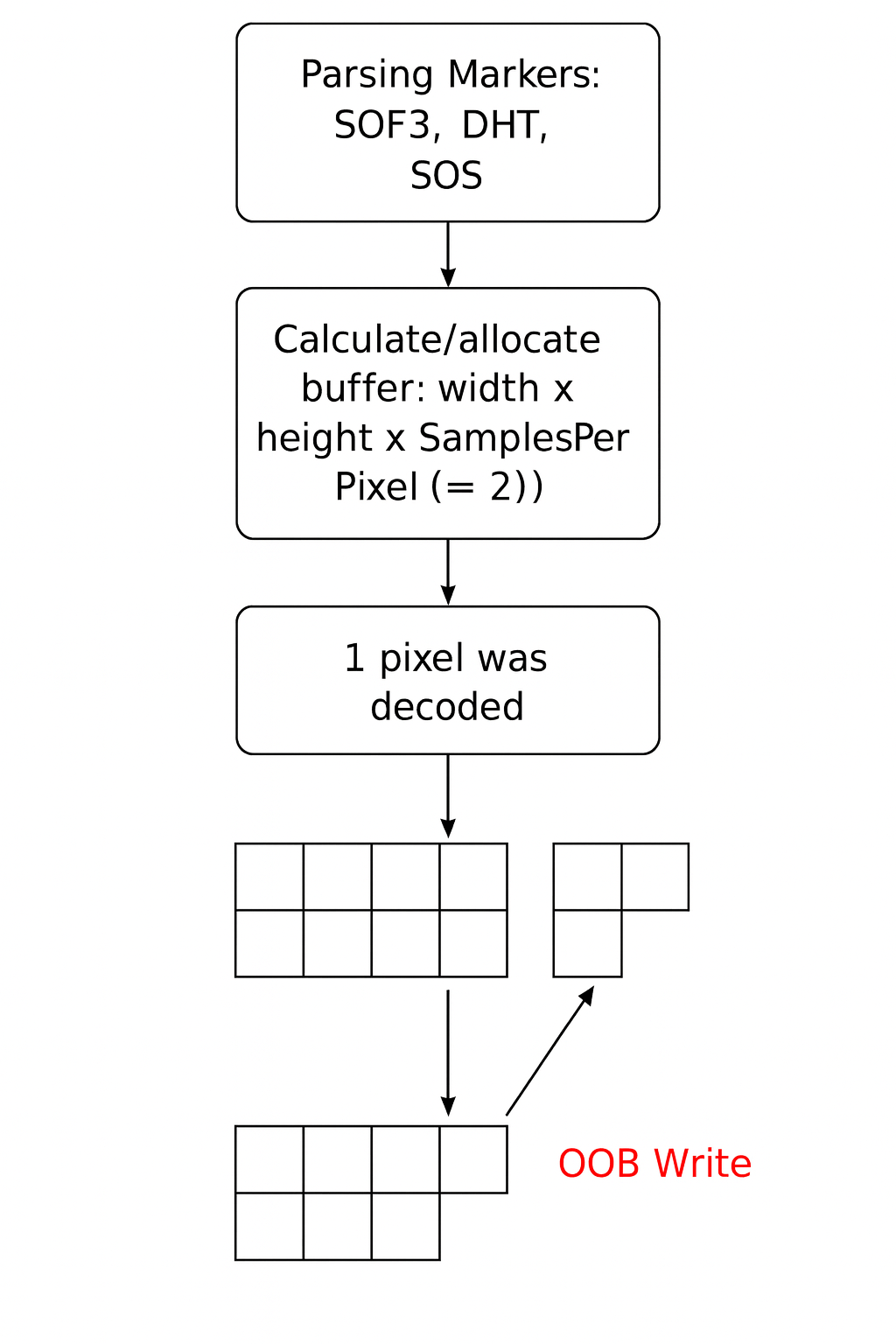

This vulnerability is an Out-of-Bounds Write in the JPEG Lossless (SOF3) decoder

(CDNGLosslessJpegUnpacker) of Apple’s ImageIO framework, specifically within RawCamera.

It occurs when the DNG file’s TIFF tag (SamplesPerPixel) does not match the number of components declared in the internal JPEG stream — leading to incorrect loop boundaries and thus a buffer overwrite.

It was patched in iOS 18.6.2, released on August 20, 2025.

Vulnerable version: iOS 18.6.1
Patched version: iOS 18.6.2

We first wanted to identify where the patch was applied.

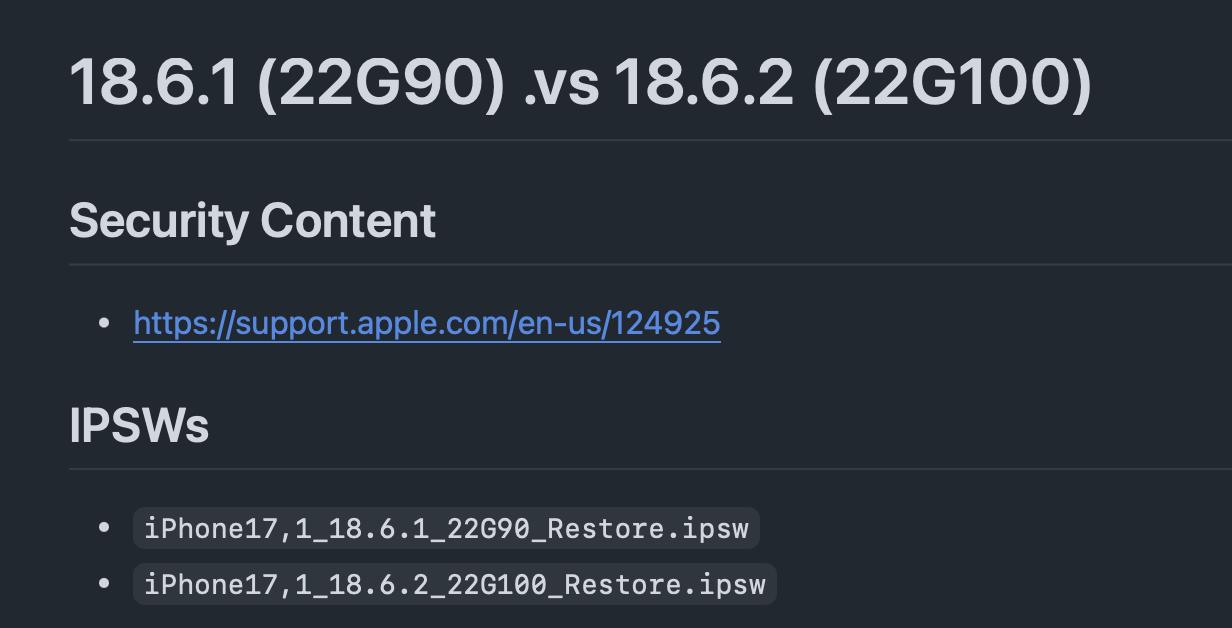

Using the public project ipsw-diffs,

we compared the binaries between 18.6.1 and 18.6.2.

Everything else remained unchanged — only RawCamera was modified.

RawCamera

/System/Library/CoreServices/RawCamera.bundle/RawCamera

-1738.140.3.0.0
-  __TEXT.__text: 0x1e2d70
-  __TEXT.__auth_stubs: 0x1850
+1738.140.3.0.11
+  __TEXT.__text: 0x1e3470
+  __TEXT.__auth_stubs: 0x1870
   __TEXT.__objc_methlist: 0x16e4
   __TEXT.__const: 0x15326
-  __TEXT.__gcc_except_tab: 0x2d440
+  __TEXT.__gcc_except_tab: 0x2d588
   __TEXT.__oslogstring: 0xec0
   __TEXT.__cstring: 0xee23
   __TEXT.__dof_RawCamera: 0x8f7
-  __TEXT.__unwind_info: 0xb1d0
+  __TEXT.__unwind_info: 0xb1e8
   __TEXT.__eh_frame: 0x278
   __TEXT.__objc_classname: 0x4b9
   __TEXT.__objc_methname: 0x3918
   __TEXT.__objc_methtype: 0xdd3
   __TEXT.__objc_stubs: 0x2da0
-  __DATA_CONST.__got: 0x9b0
+  __DATA_CONST.__got: 0x9c8
   __DATA_CONST.__const: 0x2a18
   __DATA_CONST.__objc_classlist: 0x1e0
   __DATA_CONST.__objc_catlist: 0x20
   __DATA_CONST.__objc_imageinfo: 0x8
   __DATA_CONST.__objc_selrefs: 0xcf8
   __DATA_CONST.__objc_superrefs: 0xf0
-  __DATA_CONST.__objc_arraydata: 0x3948
-  __AUTH_CONST.__auth_got: 0xc40
+  __DATA_CONST.__objc_arraydata: 0x3950
+  __AUTH_CONST.__auth_got: 0xc50
   __AUTH_CONST.__const: 0x35978
   __AUTH_CONST.__cfstring: 0x18080
   __AUTH_CONST.__objc_const: 0x48b0
-  __AUTH_CONST.__objc_arrayobj: 0x570
-  __AUTH_CONST.__objc_intobj: 0x39f0
+  __AUTH_CONST.__objc_arrayobj: 0x588
+  __AUTH_CONST.__objc_intobj: 0x3a20
   __AUTH_CONST.__objc_doubleobj: 0x480
   __AUTH_CONST.__objc_dictobj: 0x4d58
   __AUTH_CONST.__objc_floatobj: 0xc0

   - /System/Library/Frameworks/UniformTypeIdentifiers.framework/UniformTypeIdentifiers
   - /System/Library/PrivateFrameworks/AppleJPEG.framework/AppleJPEG
   - /System/Library/PrivateFrameworks/AppleJPEGXL.framework/AppleJPEGXL
+  - /System/Library/PrivateFrameworks/CMPhoto.framework/CMPhoto
   - /System/Library/PrivateFrameworks/CoreAnalytics.framework/CoreAnalytics
   - /System/Library/PrivateFrameworks/MobileAsset.framework/MobileAsset
   - /usr/lib/libSystem.B.dylib

   - /usr/lib/libobjc.A.dylib
   - /usr/lib/libxml2.2.dylib
   - /usr/lib/libz.1.dylib
-  UUID: 1BE38EB6-51C0-3069-A50F-CA3B000E0847
-  Functions: 6433
-  Symbols:   781
+  UUID: AF5B7B35-3549-329B-B706-F877FA8DF849
+  Functions: 6435
+  Symbols:   786
   CStrings:  7487

Symbols:
+ _CMPhotoDecompressionContainerCreateImageForIndex
+ _CMPhotoDecompressionContainerGetImageCount
+ _CMPhotoDecompressionSessionCreate
+ _CMPhotoDecompressionSessionCreateContainer
+ _CVPixelBufferGetDataSize
+ _kCMPhotoContainerFormatString_JFIF
+ _kCMPhotoDecompressionContainerOption_AllowedFormatsAndCodecs
+ _kCMPhotoDecompressionOption_OutputPixelFormat
- _CGImageGetBytesPerRow
- _CGImageGetHeight
- _CGImageGetWidth

Since the diff does not show code-level changes, we moved to IDA Pro for deeper inspection.

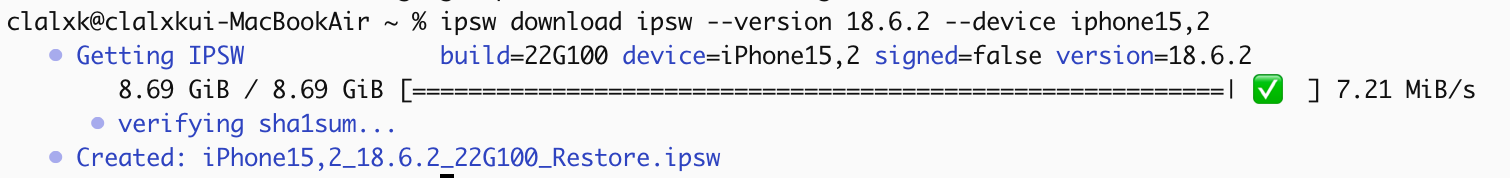

We used ipsw to download both 18.6.1 and 18.6.2 firmwares.

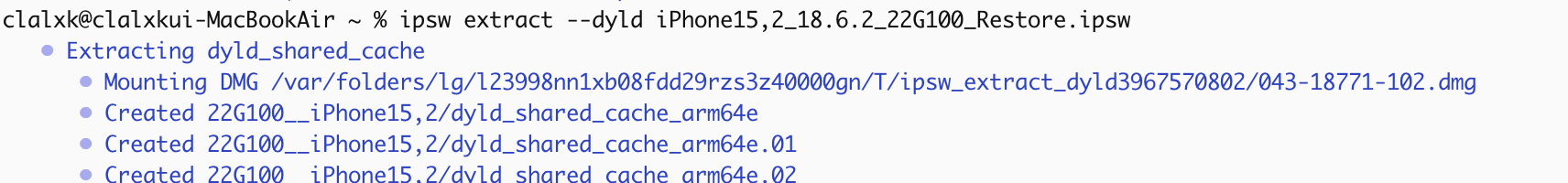

The dyld_shared_cache is a cache file that bundles frequently used system libraries and frameworks together for faster loading during iOS/macOS boot. It contains optimized versions of .dylibs and frameworks, allowing faster app startup and reduced memory usage.
Since the actual system loads these cached binaries, we can extract RawCamera directly from the cache for comparison and analysis.

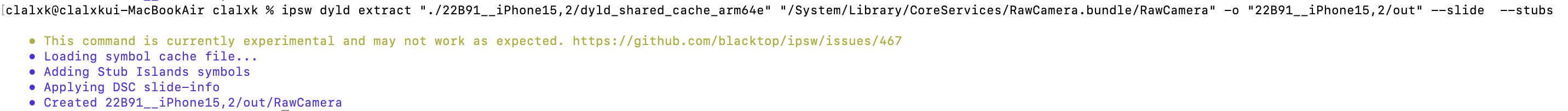

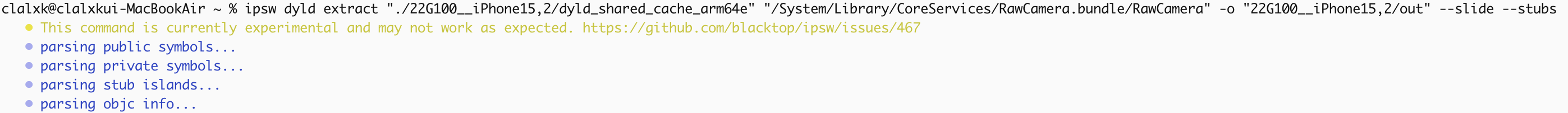

Although it can also be extracted using ipsw dyld extract, in this research, we analyzed it

directly by loading dyld_shared_cache in IDA.

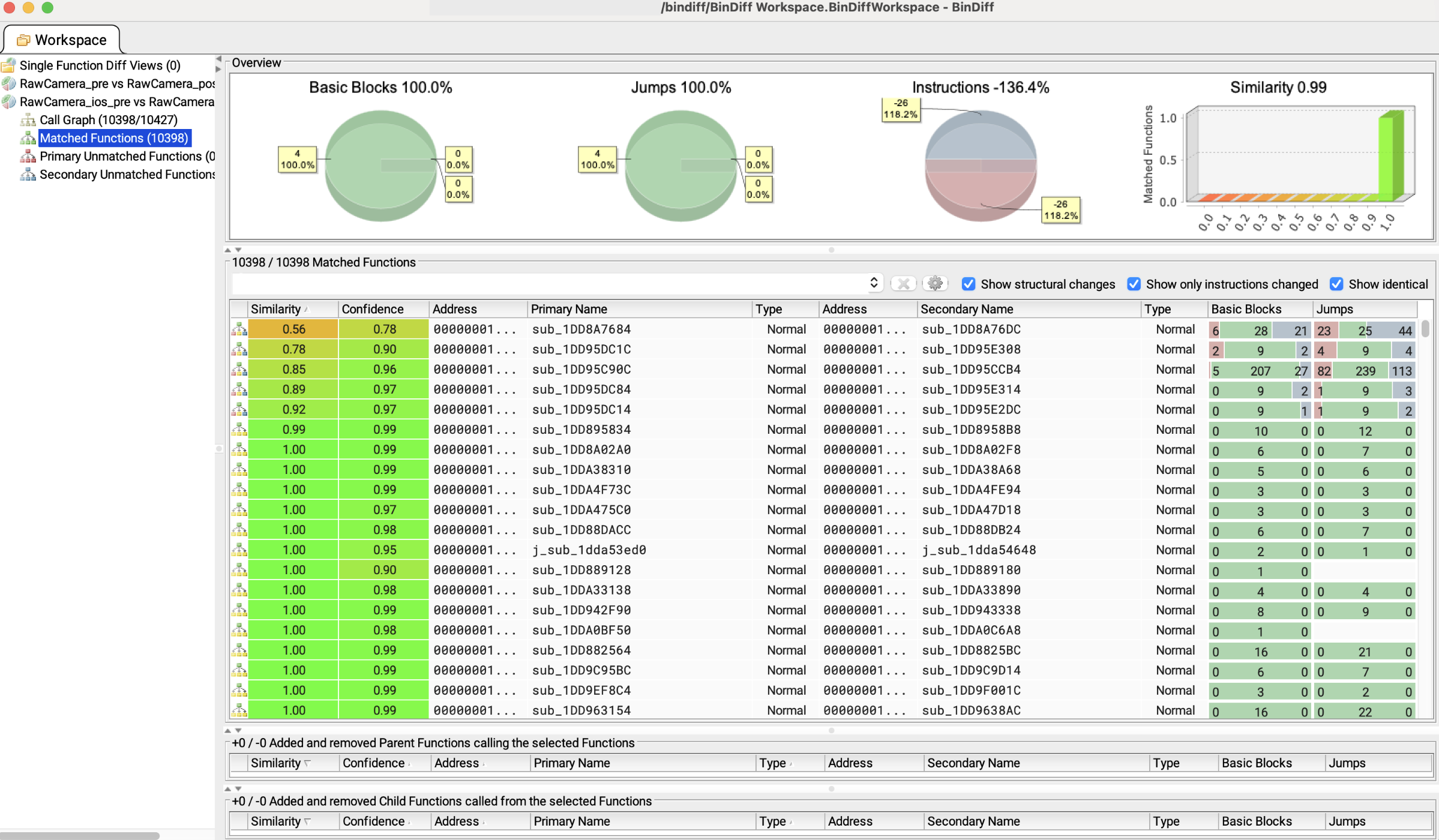

1.1 bindiff

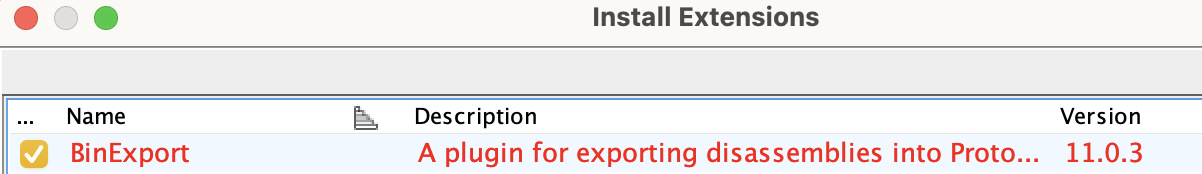

The binary was exported in BinExport format for diffing.

Due to limited space, we referred to public analysis from Quarkslab
: https://blog.quarkslab.com/patch-analysis-of-Apple-iOS-CVE-2025-43300.html

Out of six modified functions, two — sub_1DD8A7684 and sub_1DD95DC1C — were significantly changed. We focused our analysis on these two.

1.2 Analysis

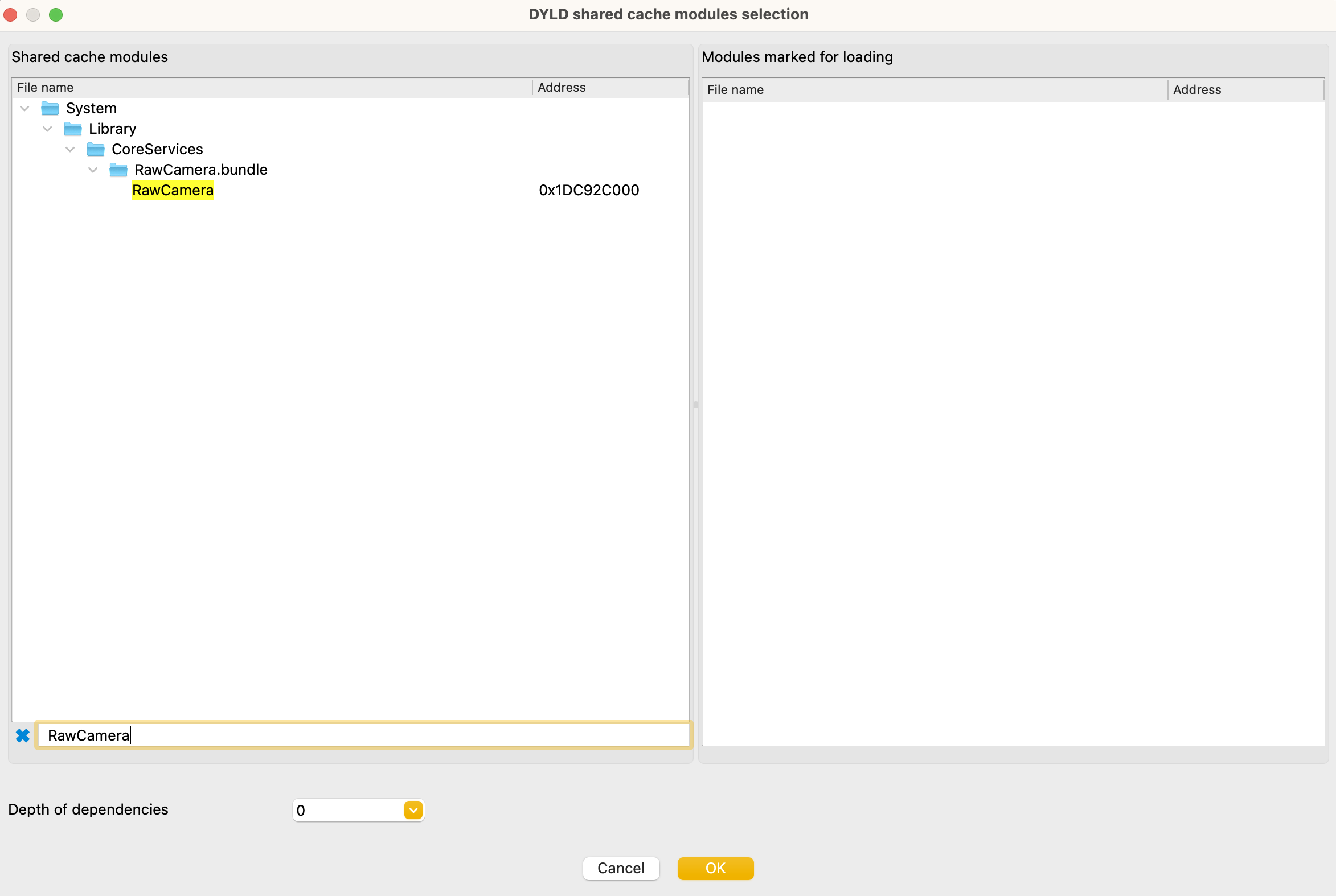

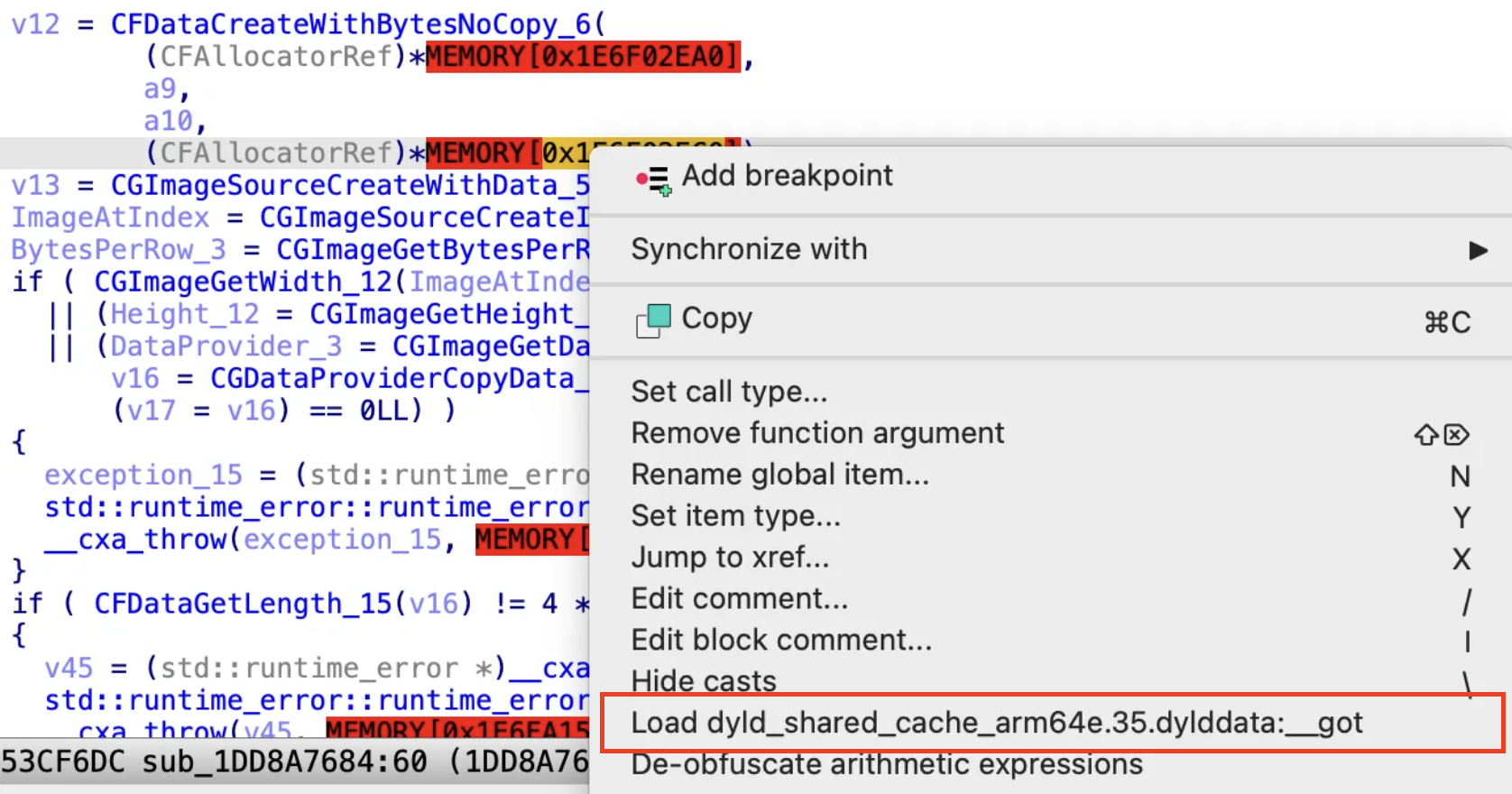

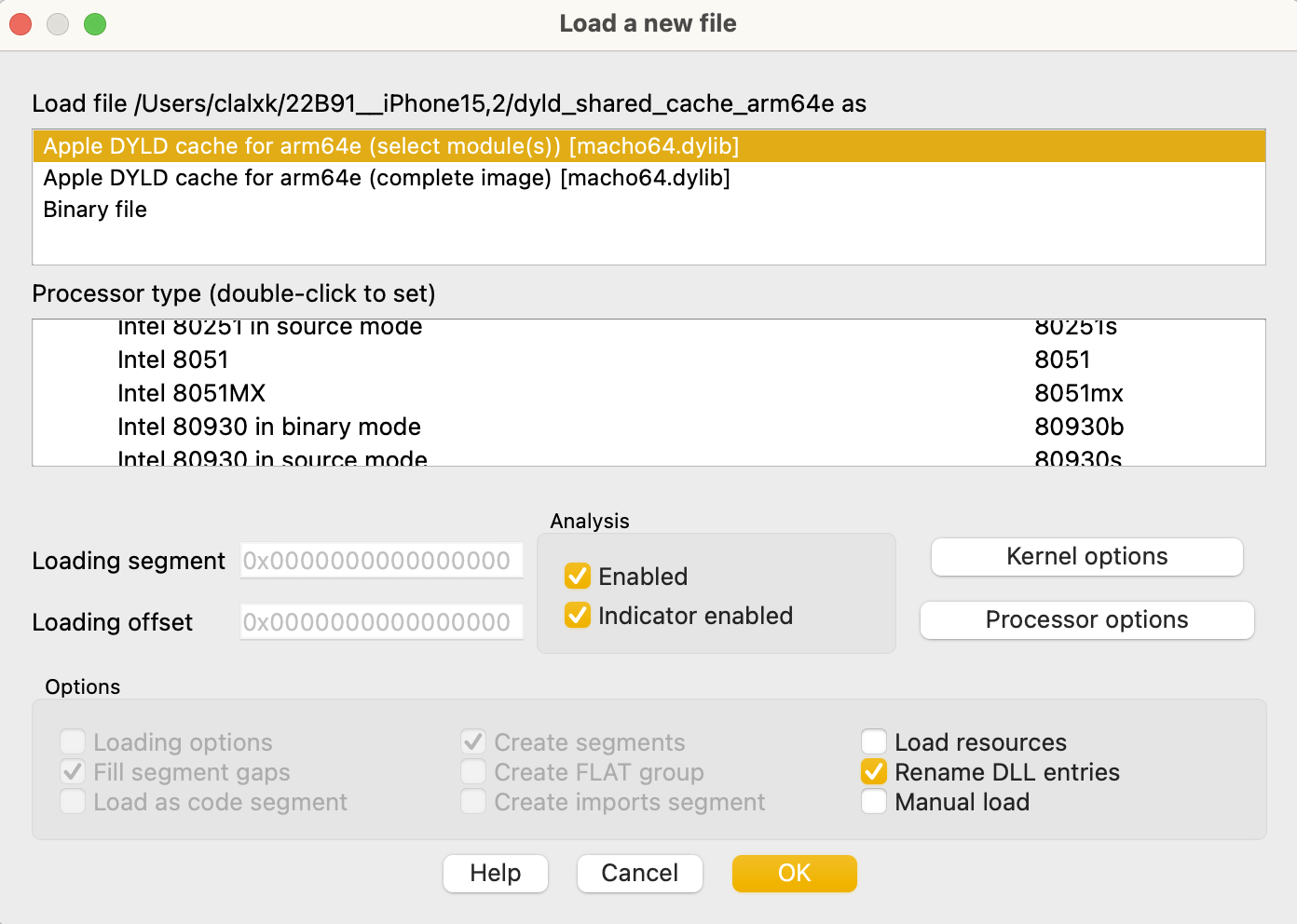

We loaded dyld_shared_cache extracted from ipsw for analysis:
→ Apple DYLD Cache for arm64e (select module(s)) → RawCamera

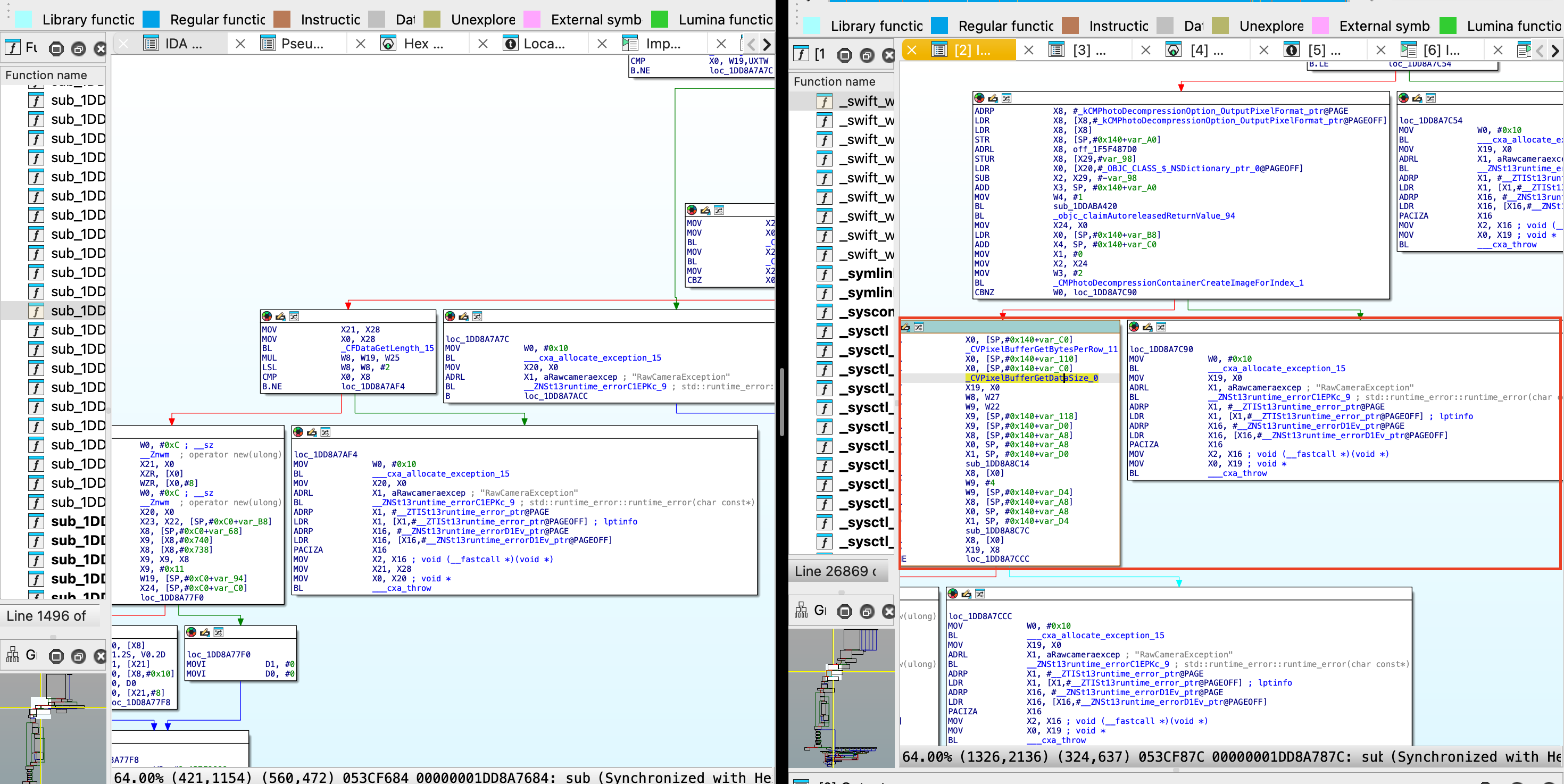

A new pixel buffer size verification step was added.

See the following section for detailed code comparison.

Code Analysis

sub_1DD8A7684 → sub_1DD8A76DC

# iOS 18.6.1 G90

void __fastcall sub_1DD8A7684(...)
// shortened: legacy CGImage path
{
    v13 = CGImageSourceCreateWithData(...);
    ImageAtIndex = CGImageSourceCreateImageAtIndex(v13, 0, 0);
    BytesPerRow = CGImageGetBytesPerRow(ImageAtIndex);
    if (CFDataGetLength(data) != 4 * width * height)
        throw RawCameraException;
    ...
}

# iOS 18.6.2 G100
void __fastcall sub_1DD8A76DC(...)
// shortened: new CMPhoto + CVPixelBuffer path
{
    CMPhotoDecompressionSessionCreate(...);
    CMPhotoDecompressionContainerCreateImageForIndex(...);
    BytesPerRow = CVPixelBufferGetBytesPerRow(buf);
    DataSize = CVPixelBufferGetDataSize(buf);
    if (DataSize != expected)
        throw RawCameraException;
    ...
}

Key Differences

CGImage → CMPhoto + CVPixelBuffer
- G90 (18.6.1):

  Uses CoreGraphics pipeline (CGImageSourceCreateImageAtIndex + CGDataProviderCopyData)

  and directly iterates raw CFData bytes.
- G100 (18.6.2):

  Introduces CMPhoto decompression pipeline:

  CMPhotoDecompressionSessionCreate → CMPhotoDecompressionContainerCreateImageForIndex → CVPixelBuffer.

  Accesses pixels through CVPixelBufferLockBaseAddress(), ensuring safer memory handling.
Buffer Size Validation Added
```
if (CFDataGetLength(data) != 4 * width * height) throw RawCameraException;
```
- Before: Only checked CFDataGetLength() == 4 * width * height.

  This ignored row padding (bytesPerRow) and format variations.

BytesPerRow = CVPixelBufferGetBytesPerRow(buf);
DataSize    = CVPixelBufferGetDataSize(buf);

// expected = f(width, height)  // sub_1DD8A8C14
// bpp = 4                       // v68=4 → sub_1DD8A8C7C
if (DataSize != expected) throw RawCameraException;

- **After:** Validates using `CVPixelBufferGetDataSize()` against an internally computed expected value (considering stride).

    → Prevents overrun caused by underestimated buffer size.

Pixel Channel Order
- Old: Assumed RGB order, manual pointer increments.
- New: Explicitly treats buffer as BGRA, reading channels in fixed offsets (B→G→R).

Summary:

The patch migrated from CoreGraphics raw byte decoding to a CoreMedia Photo pipeline

and added explicit data size/stride checks, eliminating unbounded writes from mismatched DNG metadata.

Through the analysis of the modified code, we were able to understand the general behavior of the function.

In summary, G90 (iOS 18.6.1) decodes the image through the CGImage path and directly iterates over the CFData buffer. The verification process only checks two things — the match of width and height, and whether CFDataGetLength() == 4 × W × H — while actual memory access is performed using a row-based offset (BytesPerRow). Because of this, for certain images (depending on color space, subsampling, or row padding), the validation may pass successfully, but the actual access can exceed the bounds of CFData.

In contrast, G100 (iOS 18.6.2) fixes this issue by switching the decoding pipeline from CGImage → CMPhoto (JFIF only) → CVPixelBuffer, and comparing the actual total buffer size (CVPixelBufferGetDataSize) against an expected value computed internally based on width, height, and other parameters.

Root Cause

(Analyzed based on the G90 version)

During analysis, we observed that sub_1DD8A7684 makes a function call through a vtable.

In C++, every object typically begins with a vptr (virtual table pointer).

Virtual function calls are made at runtime through that pointer — something like this->vptr[slot].

However, since the RawCamera binary is fully stripped, only addresses are visible,

making direct analysis difficult.

[ex]
(*(*this)+0xE0)(this, buf, w, h)

which conceptually means:

[ex]
this->vptr->unpack_lossless(this, buf, w, h)

To make it more readable and traceable, I defined the vtable as a structure (class) in IDA using an IDAPython script.

The script did the following:

Parse the vtable and create a corresponding struct.
Apply struct CDNGLosslessJpegUnpacker *this as the first parameter for all virtual functions.

Once this is done, the call expression (*(*this)+0xE0)(this) appears as this->vptr->fn_028(this, …), and fields like this->field_d8 become explicit — making slot mapping and call tracing much easier.

Now, let’s identify where the vulnerable function is actually invoked in the call tree.

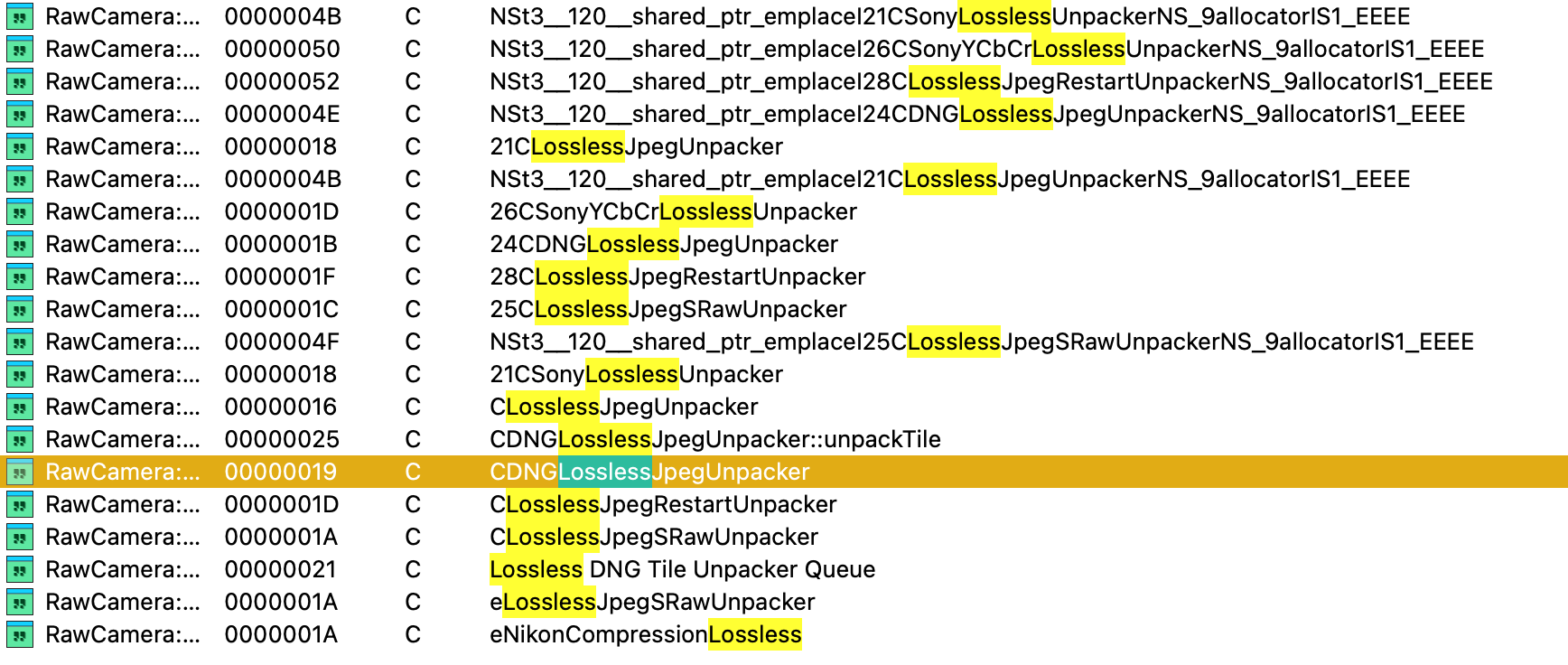

Filtering for “Lossless” quickly reveals the target class

CDNGLosslessJpegUnpacker.

Following the references leads to the function sub_1DD95DE88.

Detailed Code (sub_1DD95DE88)

void __fastcall sub_1DD95DE88(os_signpost_id_t a1, __int64 a2, __int64 a3, __int64 a4)
{
  .
  .
  .

  if ( *(_DWORD *)(a1 + 216)
    || (*(unsigned int (__fastcall **)(os_signpost_id_t))(*(_QWORD *)a1 + 224LL))(a1) == 2
    || (v12 = *(_QWORD *)(a1 + 240) - *(_QWORD *)(a1 + 232), v12 == 4) )
  {
    sub_1DD9009D4(a1, a2, a3, a4);
  }
  else
  {
    v14 = *(_DWORD *)(a1 + 44);
    v13 = *(_DWORD *)(a1 + 48);
    v15 = *(_DWORD *)(a1 + 224);
    v16 = *(_DWORD *)(a1 + 228);
    *(_QWORD *)&v35 = v12 >> 2;
    sub_1DD8731E0(&v36, &v35);
    if ( *(_QWORD *)(a1 + 240) - *(_QWORD *)(a1 + 232) != *(_QWORD *)(a1 + 264) - *(_QWORD *)(a1 + 256)
      || (unsigned int)(v14 - 100000) < 0xFFFE7961
      || (unsigned int)(v13 - 100000) < 0xFFFE7961
      || v15 - 100000 < 0xFFFE7961
      || v16 - 100000 < 0xFFFE7961
      || (v28 = v11, v17 = (unsigned int)v36, v36 >= 20000) )
    {
      exception_15 = (std::runtime_error *)__cxa_allocate_exception_15(0x10uLL);
      std::runtime_error::runtime_error(exception_15, "RawCameraException");
      __cxa_throw(exception_15, MEMORY[0x1E6FA15F0], MEMORY[0x1E6FA1480]);
    }
    v29 = a4;
    if ( (((v13 + v16 - 1) / v16) >> (*(_DWORD *)(a1 + 216) != 0)) * ((v14 + v15 - 1) / v15) != v36 )
    {
      v27 = (std::runtime_error *)__cxa_allocate_exception_15(0x10uLL);
      std::runtime_error::runtime_error(v27, "RawCameraException");
      __cxa_throw(v27, MEMORY[0x1E6FA15F0], MEMORY[0x1E6FA1480]);
    }
    group = dispatch_group_create();
    v30 = dispatch_queue_create("Lossless DNG Tile Unpacker Queue", MEMORY[0x1E6FA52F0]);

The function performs three checks:

[this+0xD8] != 0
vtable[28](this) == 2
[this+0xF0] - [this+0xE8] == 4

If any of these conditions is true, it calls sub_1DD9009D4() and exits safely.

Otherwise, it proceeds to the “Tile Queue” path — which includes the vulnerable function chain.

; Check 1
LDR   W8, [X23,#0xD8]
CBNZ  W8, loc_1DD95DF78

; Check 2
LDR   X16, [X23]
AUTDA X16, X17
LDR   X8, [X16,#0xE0]!  ; vtable[0xE0/8] -> slot 28
MOV   X0, X23
BLRAA X8, X17
CMP   W0, #2
BEQ   loc_1DD95DF78

; Check 3
LDP   X9, X8, [X23,#0xE8]
SUB   X8, X8, X9
CMP   X8, #4
B.NE  loc_1DD95E008

If none of the above branches are taken, the function reaches a section where a dispatch queue named "Lossless DNG Tile Unpacker Queue" is created — this is the path that eventually leads to the vulnerable unpacking logic.

// sub_1DD95DE88 simplified
if ([this+0xD8] != 0
 || vtable[28](this) == 2
 || ([this+0xF0]-[this+0xE8]) == 4)
{
    sub_1DD9009D4(...); // safe path
} else {
    // Vulnerable path
    dispatch_group_create();
    dispatch_queue_create("Lossless DNG Tile Unpacker Queue", ...);
    sub_1DD95E410 → sub_1DD95DCD8 → sub_1DD95E4A4 or sub_1DD95B198
    → sub_1DD95EA64 → sub_1DDA4EF58
}

Thus, when all three conditions fail,
the code spawns a tile-based decompression queue that ultimately triggers the vulnerable unpack routine.

What is the Tile Queue?

The tile queue splits a large image into small rectangular tiles (TileWidth × TileLength).

Each tile is decoded, color-corrected, and placed in the output buffer.

The vulnerable path processes each tile independently but assumes metadata consistency between SamplesPerPixel and NumComponents — which, when mismatched, causes a buffer overflow.

Simplified Call Tree

0x1DD95DE88
    0x1DD95E410
        0x1DD95DCD8
            0x1DD95E4A4 or 0x1DD95B198
                0x1DD95EF54 or 0x1DD95EA64
                    0x1DDA4EF58

Boom 💥 — and with a clearer head, let’s continue ><

Before diving into the PoC,

let’s briefly recap the background concepts necessary to understand this behavior.

Background Concepts

1. Pixels, Channels (Samples), and Bit Depth

Pixel: The smallest visual unit of an image.
Channel (Sample): A single numeric component representing one aspect of a pixel (R, G, B, etc.).

→ SamplesPerPixel = number of channels per pixel

→ BitsPerSample = number of bits used to represent each channel

Examples:

Type	SamplesPerPixel	BitsPerSample	Bytes per Pixel
Grayscale	1	8	1
RGB 8bpc	3	8	3
RGBA 16bpc	4	16	8

These metadata values determine buffer size, stride (bytes per row), and loop boundaries in decompression.

2. DNG

DNG (Digital Negative) is Adobe’s RAW image container format, built upon TIFF/EP structure.

It stores raw sensor data (e.g., Bayer CFA), thumbnails, and color correction metadata.

Key tags:

RowsPerStrip / TileWidth / TileLength
StripOffsets / TileOffsets
StripByteCounts / TileByteCounts
SamplesPerPixel / BitsPerSample

The decoder uses these values to calculate

buffer offsets, BytesPerRow, and total data size for writing.

3. RAW and Compression

RAW data is unprocessed, high bit-depth sensor output (e.g., 12/14/16 bits per pixel, typically 1 sample per pixel).

To save space, DNG supports lossless compression, most notably JPEG Lossless (SOF3).

Compression = 1 → Uncompressed
Compression = 7 → JPEG (Baseline or Lossless)
Compression = 8 → Deflate (ZIP)
Compression = 34892 → JPEG Baseline (Lossy)

✅ The vulnerability resides in the Lossless JPEG (SOF3) decoding path.

1.3 PoC

Normal DNG files typically do not reach the vulnerable path.

However, by tweaking metadata tags (for example, SamplesPerPixel) so that the initial checks pass, we can force the code path to invoke the vulnerable function.

I ran this on my phone without updating it (because I had no space 😂).

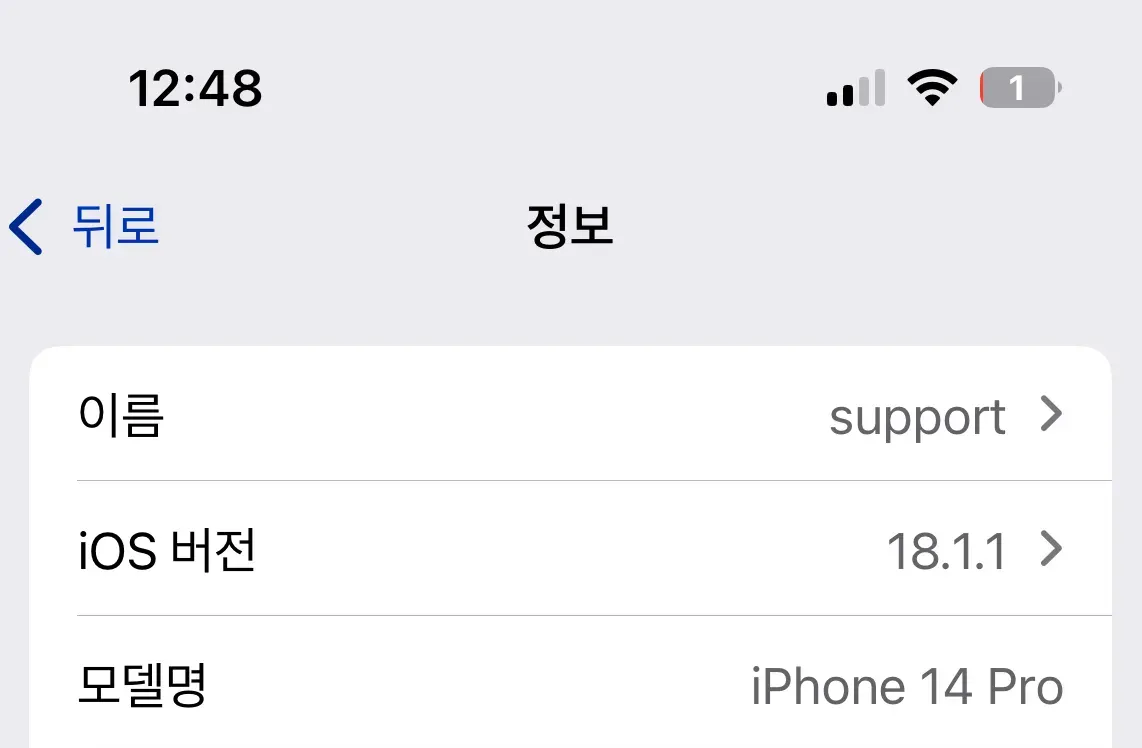

My device is on iOS 18.1.1.

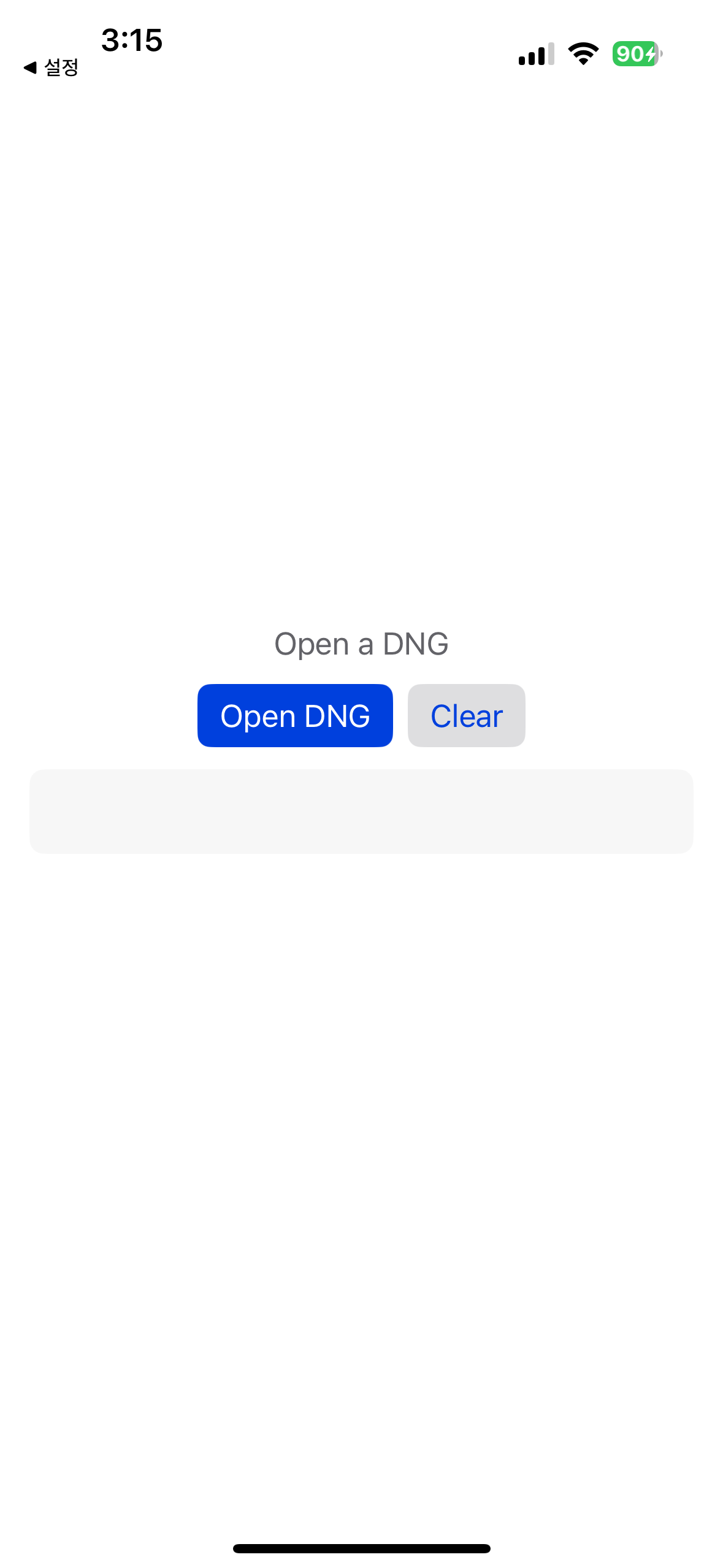

Using the small DNG viewer app above, I loaded the PoC DNG and observed the following:

import SwiftUI
import UniformTypeIdentifiers
import Combine
import UIKit
import CoreImage
import CoreImage.CIFilterBuiltins

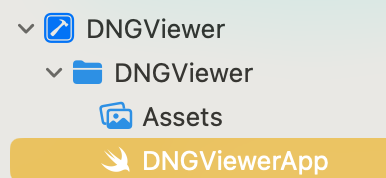

@main
struct DNGViewerApp: App {
    var body: some Scene {
        WindowGroup {
            ContentView()
        }
    }
}

final class RawRenderer: ObservableObject {
    private let context = CIContext(options: [
        .cacheIntermediates: false
    ])

    @Published var image: UIImage?
    @Published var log: String = ""

    func render(from url: URL) {
        log = "Loading: \(url.lastPathComponent)\n"

        guard let raw = CIRAWFilter(imageURL: url, options: [:]) else {
            log += "CIRAWFilter unavailable or failed to open URL\n"
            return
        }

        guard let ciImage = raw.value(forKey: kCIOutputImageKey) as? CIImage else {
            log += "Failed to get CIImage\n"; return
        }
        let extent = ciImage.extent.integral
        guard let cg = context.createCGImage(ciImage, from: extent) else {
            log += "Failed to create CGImage\n"; return
        }
        image = UIImage(cgImage: cg)
        log += "Rendered: \(Int(extent.width))×\(Int(extent.height))\n"
    }
}

struct ContentView: View {
    @StateObject var renderer = RawRenderer()
    @State private var showPicker = false

    var body: some View {
        VStack(spacing: 12) {
            if let img = renderer.image {
                Image(uiImage: img)
                    .resizable()
                    .scaledToFit()
                    .background(Color.black.opacity(0.05))
                    .cornerRadius(12)
                    .padding(.horizontal)
            } else {
                Text("Open a DNG").foregroundColor(.secondary)
                    .padding(.top, 40)
            }

            HStack {
                Button("Open DNG") { showPicker = true }
                .buttonStyle(.borderedProminent)

                Button("Clear") { renderer.image = nil; renderer.log = "" }
                .buttonStyle(.bordered)
            }

            ScrollView {
                Text(renderer.log)
                    .font(.system(.caption, design: .monospaced))
                    .frame(maxWidth: .infinity, alignment: .leading)
                    .padding()
                    .background(Color.black.opacity(0.03))
                    .cornerRadius(8)
            }
            .frame(maxHeight: 160)
            .padding(.horizontal)
        }
        .sheet(isPresented: $showPicker) {
            DocumentPicker { url in
                if let url { renderer.render(from: url) }
            }
        }
    }
}

struct DocumentPicker: UIViewControllerRepresentable {
    var onPick: (URL?) -> Void

    func makeCoordinator() -> Coordinator { Coordinator(onPick: onPick) }
    func makeUIViewController(context: Context) -> UIDocumentPickerViewController {
        // DNG UTI는 전통적으로 "com.adobe.raw-image".
        // iOS 14+에선 UTType.image(또는 item)로 열어도 무방.
        let vc = UIDocumentPickerViewController(forOpeningContentTypes: [
            UTType(importedAs: "com.adobe.raw-image"), // DNG
            .image, .item
        ])
        vc.allowsMultipleSelection = false
        vc.delegate = context.coordinator
        return vc
    }
    func updateUIViewController(_ uiViewController: UIDocumentPickerViewController, context: Context) {}

    final class Coordinator: NSObject, UIDocumentPickerDelegate {
        let onPick: (URL?) -> Void
        init(onPick: @escaping (URL?) -> Void) { self.onPick = onPick }
        func documentPicker(_ controller: UIDocumentPickerViewController, didPickDocumentsAt urls: [URL]) {
            onPick(urls.first)
        }
        func documentPickerWasCancelled(_ controller: UIDocumentPickerViewController) { onPick(nil) }
    }
}

Here is the image that was used.

Using this viewer to load the PoC DNG file, I observed the following details:

CLosslessJpegUnpacker at 0x1DD902E78
CDNGLosslessJpegUnpacker at 0x1DD95DE88
CDNGLosslessJpegUnpacker::unpackTile at 0x1DD95B198
CLosslessJpegRestartUnpacker at 0x1DD95F784

Trigger conditions:

JPEG marker: SOF3 (Lossless JPEG) present
DHT (Define Huffman Table(s)) present
SOS (Start Of Scan) valid
BitsPerSample = 16
SamplesPerPixel = 2 (TIFF tag)
NumComponents = 1 (SOF3/JPEG stream)

The root cause is a mismatch between how the loop termination condition is computed versus how the inner loop performs writes:

The outer pixel loop is bounded by NumComponents = 1 (so it expects one component per pixel),
but the inner write routine assumes SamplesPerPixel = 2 and writes two 16-bit samples per pixel, advancing the destination pointer as if there are two samples per pixel.

As a result, each row ends up writing twice the expected number of bytes → out-of-bounds writes occur at the row boundary.

Following the flow, you can trace the chain like:

0x1DD95B198 → 0x1DD95B6C4 → 0x1DD95B8DC → 0x1DD95B944 → 0x1DD95BCCC

(Trace through these offsets to map how the pixel decoder iterates and performs the writes.)

The sample image I used is from DPReview:

https://www.dpreview.com/sample-galleries/4949897610/pentax-k-3-mark-iii-sample-gallery/1638788346

(Used that image as a starting point to craft a DNG variant for the PoC.)

Summary

In short, CVE-2025-43300 is an OOB Write caused by a mismatch between TIFF metadata and the internal JPEG Lossless stream:

SamplesPerPixel = 2 (DNG tag) but NumComponents = 1 (SOF3 stream)
Loop termination is computed against components(=1) but the inner write loop writes 16-bit × 2 samples per pixel, causing double writes per row → OOB write.

Using dyld_shared_cache diffs and vtable typeing, I traced the vulnerable path to the CDNGLosslessJpegUnpacker → Tile Unpacker and identified the exact trigger conditions and dataflow.

Apple patched the issue in iOS 18.6.2 by:

Switching from the fragile CGImage + CFData raw traversal pipeline to a CMPhoto → CVPixelBuffer pipeline (more robust, standardized pixel buffer APIs).
Adding explicit data size / stride validation (compare CVPixelBufferGetDataSize() to an internally computed expected value that takes stride into account).
Changing pixel access order/assumptions to match the actual buffer layout.

If you are on a real device, update to iOS 18.6.2 or later — the patched code prevents attempts to reach this unsafe write path. (I should update mine too — I’ll do that soon 😂)

That wraps up this short research note — the path was a fun exercise in dyld cache extraction, vtable reconstruction, and low-level JPEG/DNG decoding logic. I learned a lot following the call chain and seeing how a subtle metadata mismatch can cause memory corruption.
